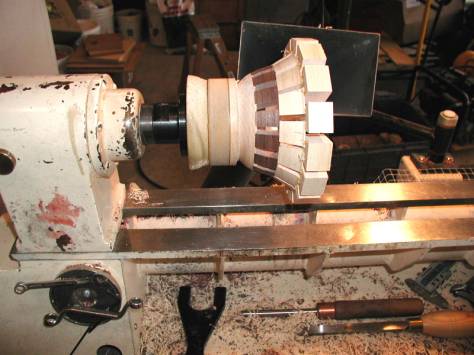

Using a scraper
cleanup the first two rings. Note: do NOT touch the outer row of
segments with the scraper. |
|

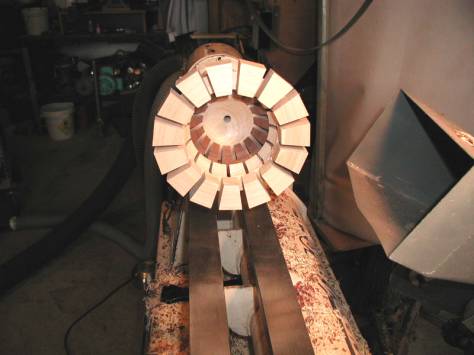

Clean up the outer first
to rows of segments only. |
|
Run a lamp
rod through top ring and MDF. Lock with 2 nuts, one on each side. This
will support the project while turning and gluing on additional
segments. |
|

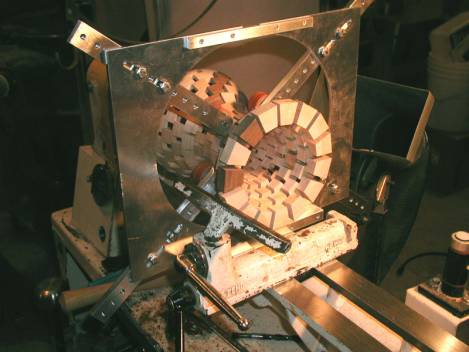

Clean up the outside,
a steady rest is used to clean up the inside to the outer row of
segments only |

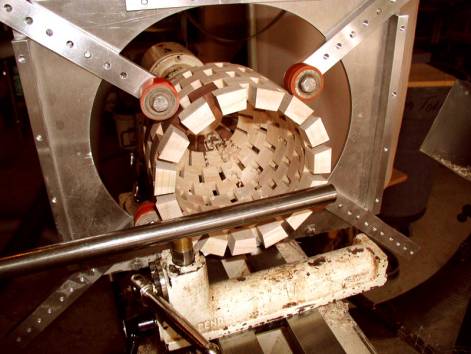

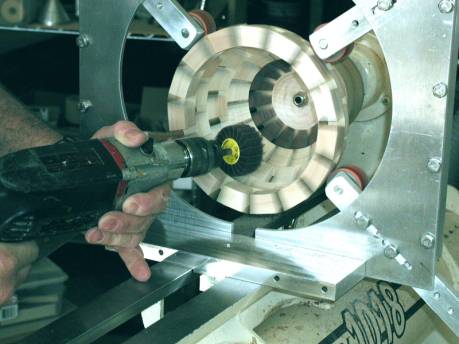

Using
the steady rest, power sand the inside. |

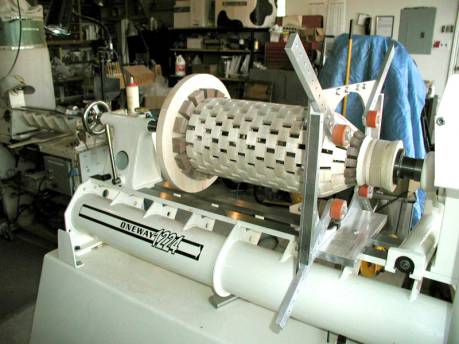

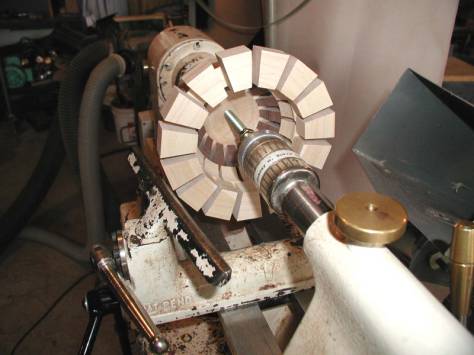

Continue building the
project. Note: tailstock adapter and MDF being used to clamp a row of
segments. |

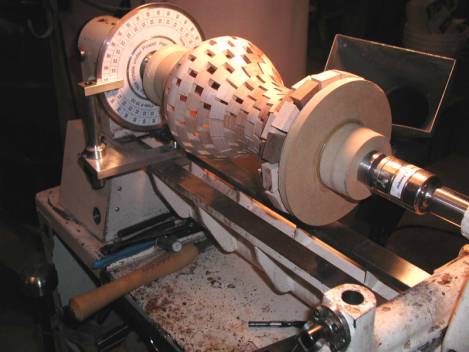

There are now 14 rows
glued together at this point of the project. |

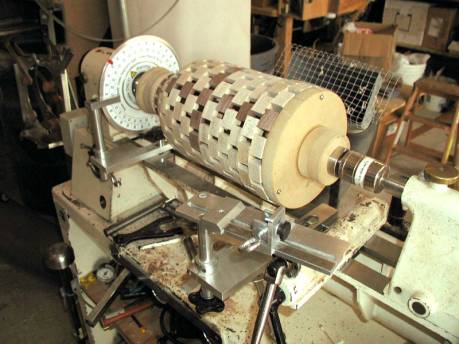

Lamp glue up is now
almost completed. |

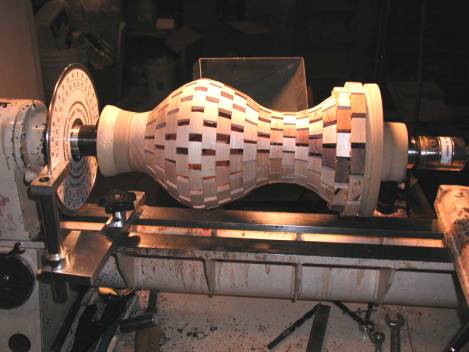

Lamp will now be turned
and sanded on the inside to the last row of segments. |

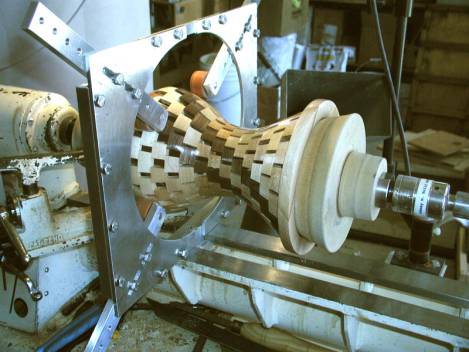

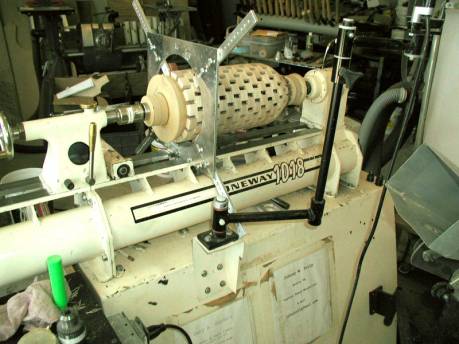

Tailstock adapter and MDF
cone used to true up the outside on the Oneway 1018 lathe. |

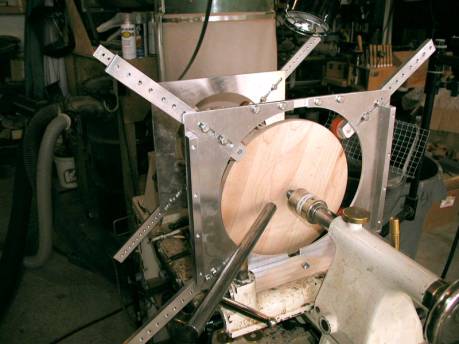

Base has been glued onto
the bottom of the Lamp project. Tailstock is used to clamp the base |
|

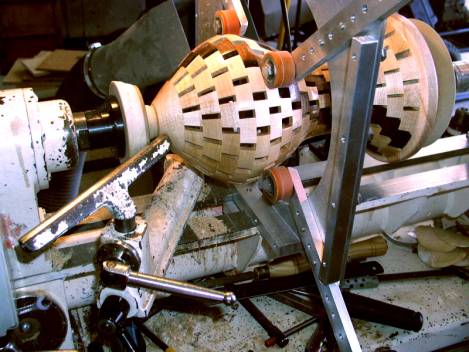

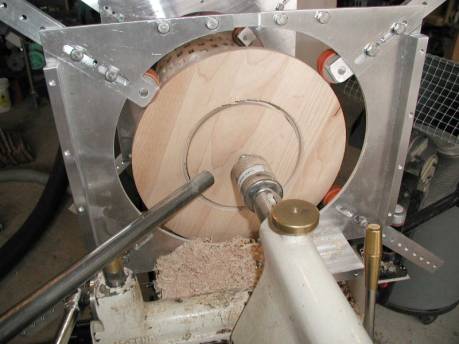

Bottom marked to core
out the base, stead rest being used |
|
Bottom cut through
ready for removal. |

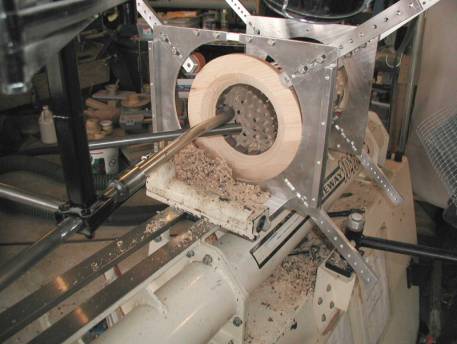

Inside being cored with
the Lyle Jamieson hollowing tool with the tear drop cutter. |
| Tailstock adapter, MDF and steady rest are used.  |

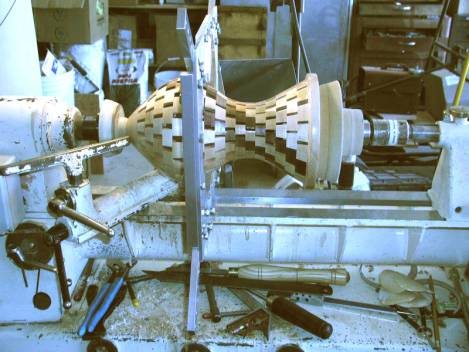

Turn the top down to
shape, sand and finish. |
Part the remaining top
down to the lamp rod. Care must be used for the final cut at the lamp
rod. |

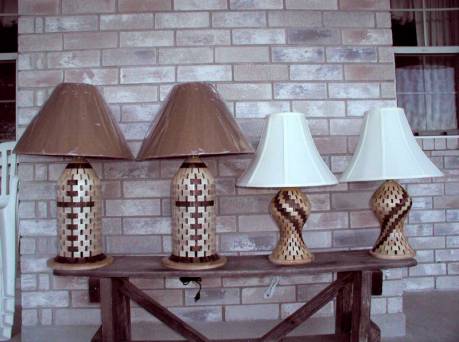

Finished Product |
|
|
