Robust MT#2 Live Center and Cone Set Combo

SKU: LA-LCSET Category:

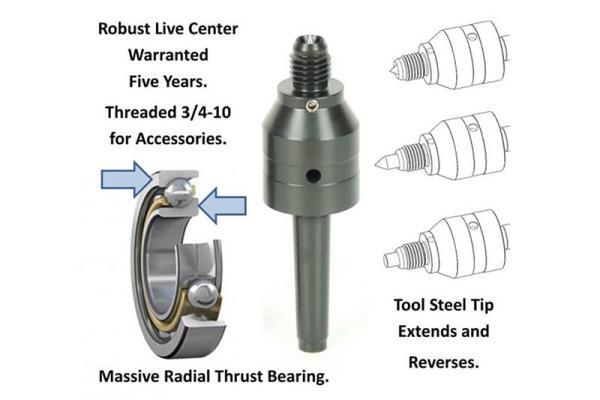

Robust Live Centers use bigger bearings, and are warranted for five years.

A precision 40 degree angular contact ball bearing, sealed & lubricated for life, carries both the thrust load and rear radial load.

Combined with a precision radial bearing in the nose, this two bearing setup will deliver long lasting service and accuracy.

The tip of the center extends and reverses to accommodate your turning.

The flat end is useful when reverse chucking using a vacuum chuck or jam chuck. The center will support the work without marking the bottom of the piece.

The ends of the live and drive centers are threaded 3/4‐10 for standard accessories.

A 5/16” thru hole accommodates drilling.

#2 Morse Taper shank is tapped 3/8-16 for drawbar applications.

The parts are treated with black oxide to minimize corrosion.

Cone Set consists of an aluminum tip and reversible 4″ bull nose

Fits other manufacturer’s centers with 3/4-10 threads.
